Walter-Titex

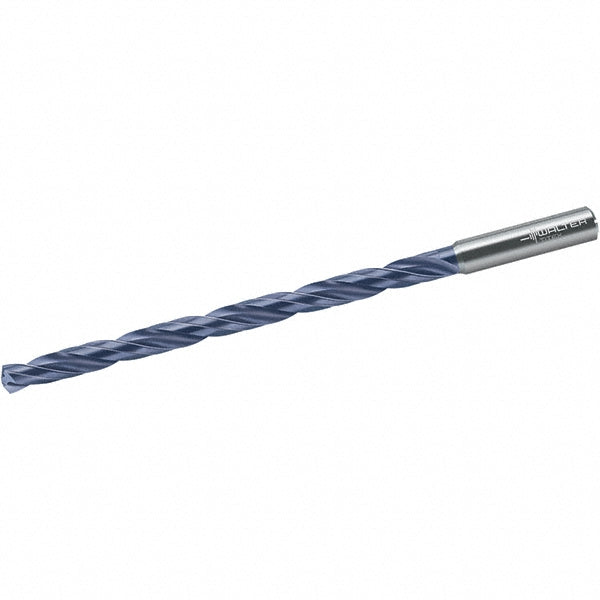

0.1340" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618752
MFR# 6618752Series DC150-12-03
$216.54List $237.15
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Walter-Titex 6618752 is a 0.1340" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel, superalloys & titanium. Series DC150-12-03.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit finish coatingTiNAl
Drill bit materialSolid Carbide
Drill bit size0.1340
Drill point angle degrees140
Drill point length0.0244
Flute by diameter ratio12xD
Flute length2.1260
Maximum drilling depth1.8900
Number of flutes2
Overall length3.6220
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel; Superalloys & Titanium
Shank diameter0.2360
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
