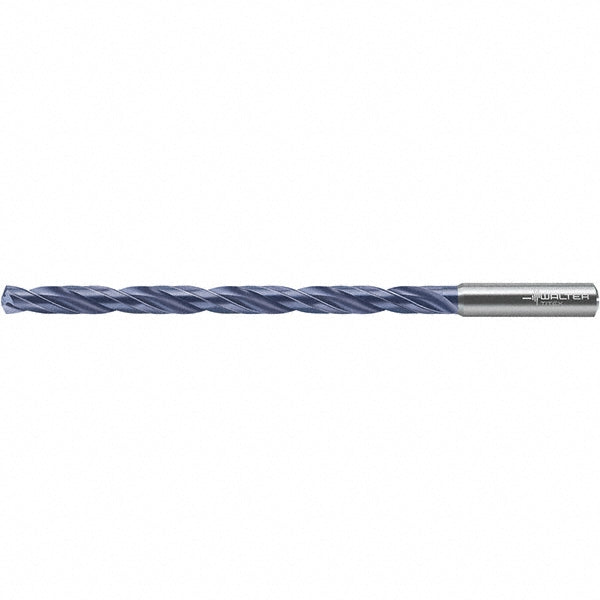

0.2813" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618799

Walter-Titex

0.2813" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618799

MFR# 6618799Series DC150-12-A1

$196.05List $243.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6618799 is a 0.2813" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cobalt, iron, nickel, titanium alloy. Series DC150-12-A1.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2813
Drill point angle140
Drill point length0.0510
Flute by diameter ratio12xD
Flute length4.3310
Maximum drilling depth3.8580
Number of flutes2
Overall length5.8270
Primary workpiece materialCobalt; Iron; Nickel; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.3150
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
