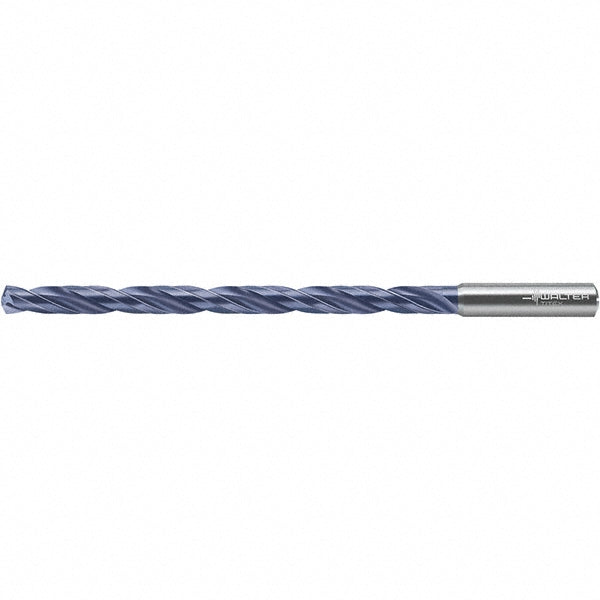

5/16" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618807

Walter-Titex

5/16" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618807

MFR# 6618807Series DC150-12-A1

$196.05List $243.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/16
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6618807 is a 5/16" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cobalt, iron, nickel, titanium alloy. Series DC150-12-A1.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in5/16
Drill point angle140
Drill point length0.0570
Flute by diameter ratio12xD
Flute length4.3310
Maximum drilling depth3.8580
Number of flutes2
Overall length5.8270
Primary workpiece materialCobalt; Iron; Nickel; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.3150
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
