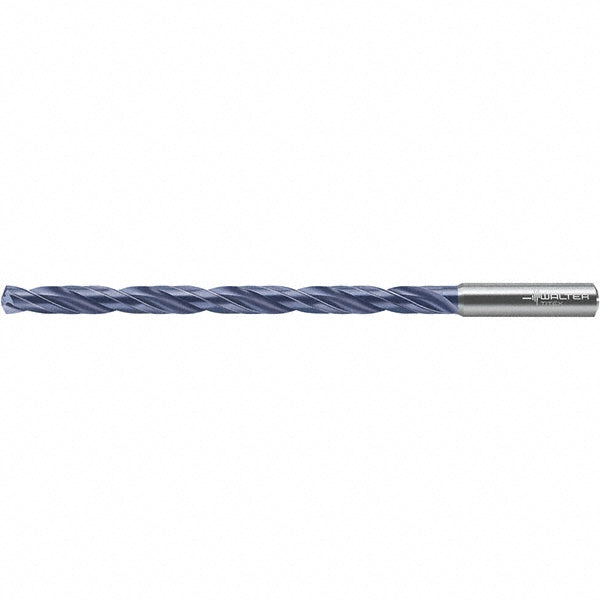

0.3858" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618826

Walter-Titex

0.3858" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618826

MFR# 6618826Series DC150-12-A1

$228.40List $254.88 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6618826 is a 0.3858" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cobalt, iron, nickel, titanium alloy. Series DC150-12-A1.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.3858
Drill point angle140
Drill point length0.0700
Flute by diameter ratio12xD
Flute length5.4330
Maximum drilling depth4.8430
Number of flutes2
Overall length7.0870
Primary workpiece materialCobalt; Iron; Nickel; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.3940
Shank length1.5750
Shank typeStraight-Cylindrical
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
