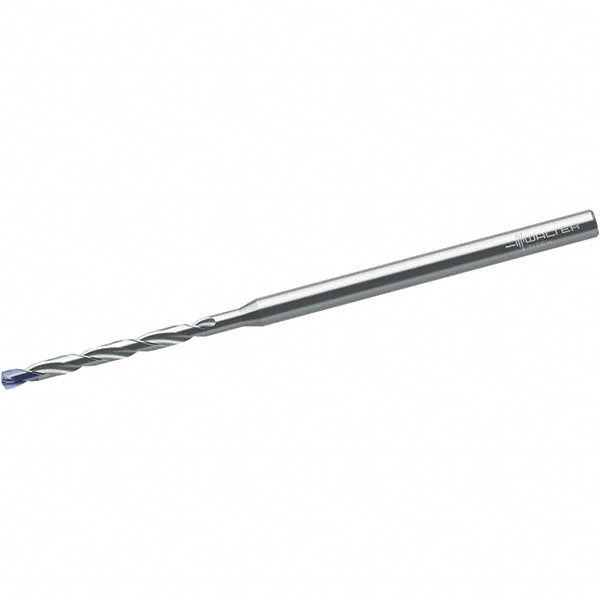

3/32" Solid Carbide Drill Bit, AlCrN, 140° point - Walter-Titex 6712939

Walter-Titex

3/32" Solid Carbide Drill Bit, AlCrN, 140° point - Walter-Titex 6712939

MFR# 6712939Series A6478TML

$122.64List $144.71 Save 15%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/32
CoatingAlCrN

Description

The Walter-Titex 6712939 is a 3/32" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for cast iron, non-ferrous metal, steel. Series A6478TML.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in3/32
Drill point angle140
Flute by diameter ratio8xD
Flute length (mm)24.00
Flute typeSpiral
Material gradeK30F
Maximum drilling depth (mm)20.00
Overall length (mm)74.00mm
Point typeAlpha 2 Plus Micro
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Secondary workpiece materialCobalt; Glass; Graphite; Iron Alloy; Nickel; Titanium; Titanium Alloy
Shank diameter (mm)3.00mm
Shank length (mm)45.00mm
Shank typeStraight-Cylindrical
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationBlind Hole; Stack Drilling; Through Hole Drilling
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
