Walter-Titex

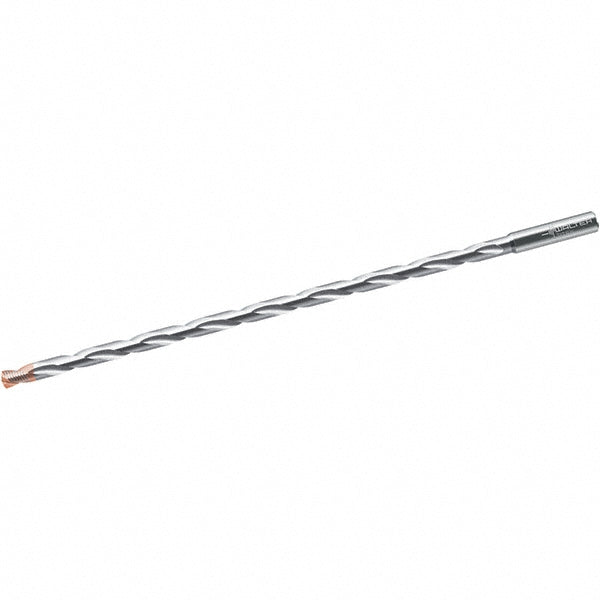

0.2187" Solid Carbide Drill Bit, TiAlN, 140° point - Walter-Titex 6901258
MFR# 6901258Series DC170
$605.01List $661.00
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Walter-Titex 6901258 is a 0.2187" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series DC170.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size0.2187
Drill point angle140
Drill point length0.0400
Flute by diameter ratio25xD
Flute length6.8500
Flute typeSpiral
Maximum drilling depth6.4960
Number of flutes2
Overall length8.4250
Point typeProprietary
Primary workpiece materialCast Iron; Steel
Secondary workpiece materialHard Material
Shank diameter0.2360
Shank length1.4170
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
Web configurationTapered
