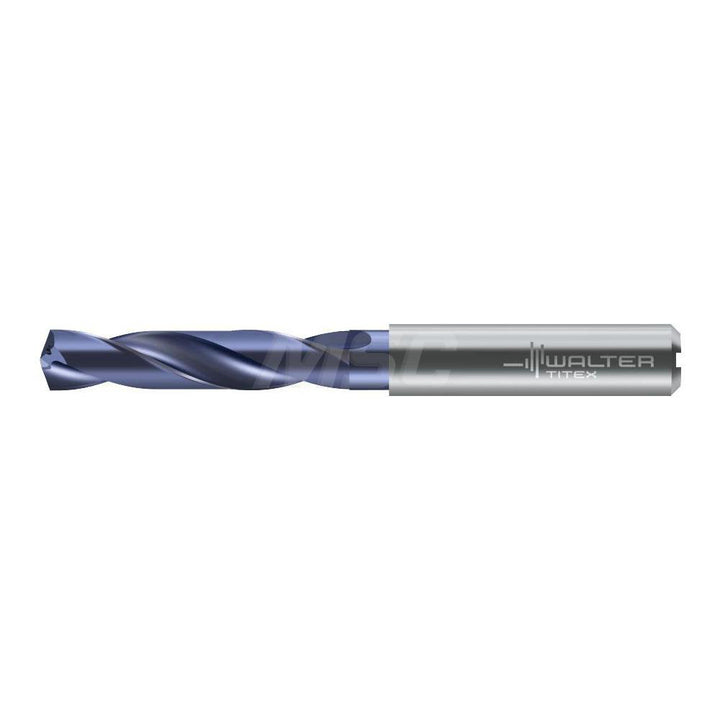

1/4" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 6968775

Walter-Titex

1/4" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 6968775

MFR# 6968775Series DC150-03-A1

$73.65List $94.46 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/4
Flutes2

Description

The Walter-Titex 6968775 is a 1/4" Solid Carbide Screw Machine drill bit, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC150-03-A1.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0450
Drill tip finish coatingTiNAl
Flute by diameter ratio3xD
Flute length1.3390
Maximum drilling depth0.9450
Number of flutes2
Overall length3.11
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.3150
Shank length1.4200
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
