Walter-Titex

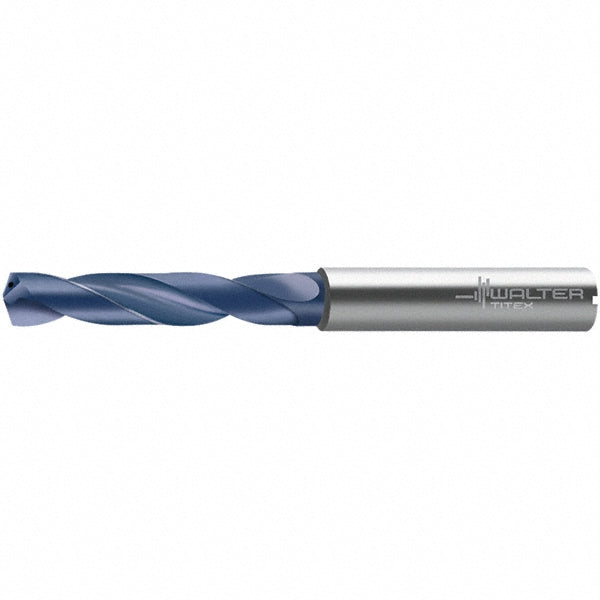

9/32" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6968785
MFR# 6968785Series DC150
$73.65List $94.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
CoatingTiNAl
Description
The Walter-Titex 6968785 is a 9/32" Solid Carbide drill bit with a TiNAl finish, 140° point. Series DC150.
Specifications
Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit materialSolid Carbide
Drill bit size in9/32
Drill point angle degrees140
Drill point length0.0510
Flute by diameter ratio3xD
Flute length1.6140
Flute typeSpiral
Maximum drilling depth1.1420
Number of flutes2
Overall length3.1100
Point typeStandard
Shank diameter0.3150
Shank length1.4170
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationHolemaking; Blind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
