Walter-Titex
0.4134" Solid Carbide Drill Bit, 140° point - Walter-Titex 6968827
MFR# 6968827Series DC150-03-A1
$116.72List $149.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

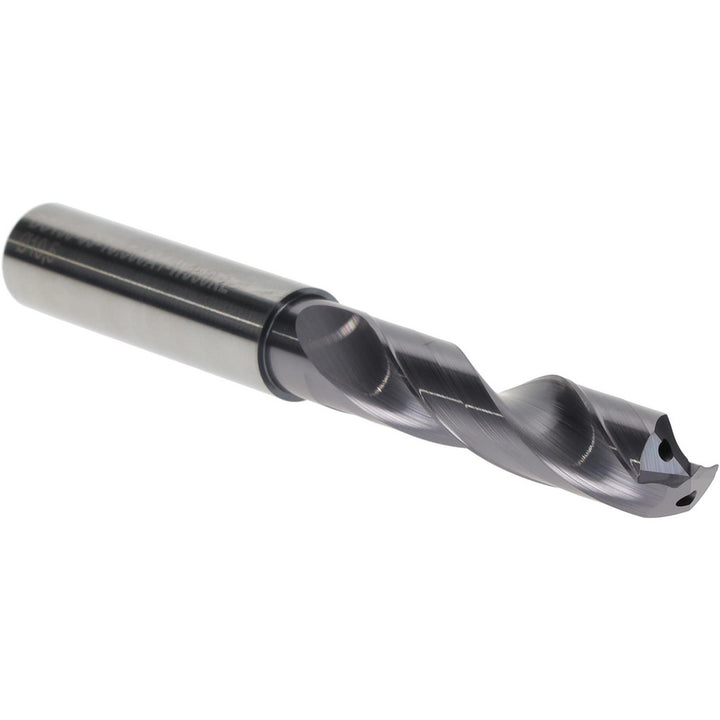

The Walter-Titex 6968827 is a 0.4134" Solid Carbide drill bit, 140° point. Series DC150-03-A1.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.4134
Drill bit size range0.4000 to 0.4500
Drill point angle140
Drill point length0.0750
Drill tip finish coatingTiNAl
Flute by diameter ratio3xD
Flute length2.1650
Maximum drilling depth1.5750
Number of flutes2
Overall length4.016
Shank diameter0.4720
Tool materialSolid Carbide
