Walter-Titex

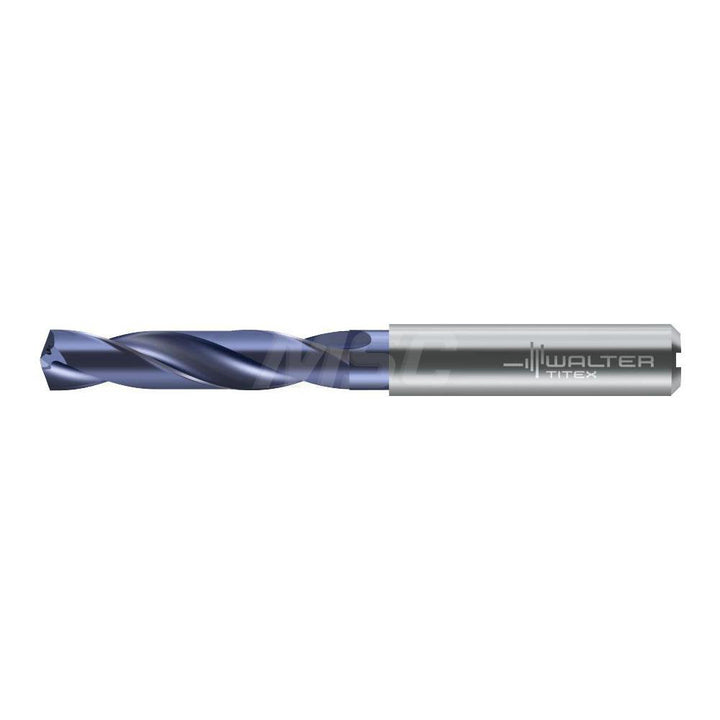

0.4331" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 6968833
MFR# 6968833Series DC150-03-A1
$154.26List $194.41
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Walter-Titex 6968833 is a 0.4331" Solid Carbide Screw Machine drill bit, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC150-03-A1.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.4331
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0790
Drill tip finish coatingTiNAl
Flute by diameter ratio3xD
Flute length2.1650
Maximum drilling depth1.5750
Number of flutes2
Overall length4.016
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.4720
Shank length1.7700
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
