0.3780" Solid Carbide Drill Bit, TiAlN, 140° point - Walter-Titex 7287833

Walter-Titex

0.3780" Solid Carbide Drill Bit, TiAlN, 140° point - Walter-Titex 7287833

MFR# 7287833Series DC150

$110.65List $141.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

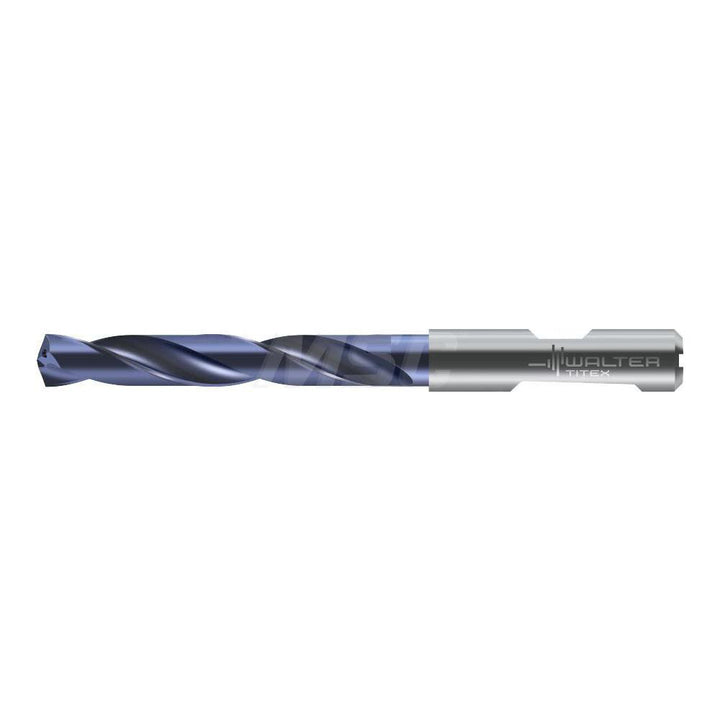

The Walter-Titex 7287833 is a 0.3780" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, non-ferrous metal, steel, superalloys & titanium. Series DC150.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeWJ30RE
Drill bit materialSolid Carbide
Drill bit size0.3780
Drill bit size range0.3500 - 0.4000
Drill point angle degrees140
Drill point length0.0690
Flute by diameter ratio5xD
Flute length (mm)61.00
Flute typeSpiral
Material gradeWJ30RE
Maximum drilling depth (mm)49.00
Number of flutes2
Overall length (mm)103.00
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel; Superalloys & Titanium
Shank diameter (mm)10.00
Shank length1.5750
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
