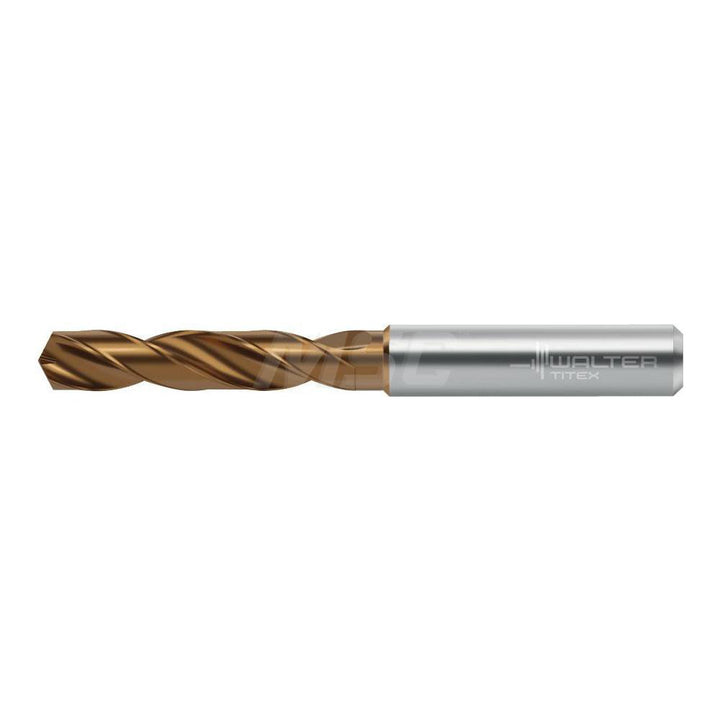

0.1614" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7377075

Walter-Titex

0.1614" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7377075

MFR# 7377075Series DC160

$97.62List $109.08 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 7377075 is a 0.1614" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, steel. Series DC160.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.1614
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)0.75
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Maximum drilling depth (mm)17.00
Number of flutes2
Overall length2.5984
Point typeX treme Evo
Primary workpiece materialCast Iron; Steel
Shank diameter0.2362
Shank length1.4200
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
