Walter-Titex

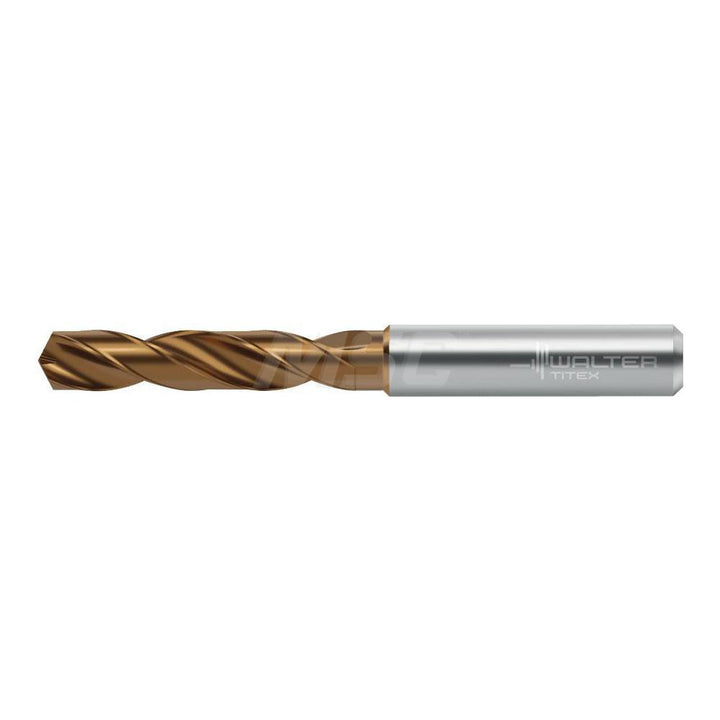

0.3189" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7377171
MFR# 7377171Series DC160
$168.33List $205.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Walter-Titex 7377171 is a 0.3189" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, steel. Series DC160.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.3189
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)1.47
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeSpiral
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length3.5039
Point typeX treme Evo
Primary workpiece materialCast Iron; Steel
Shank diameter0.3937
Shank length1.5800
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
