Walter-Titex

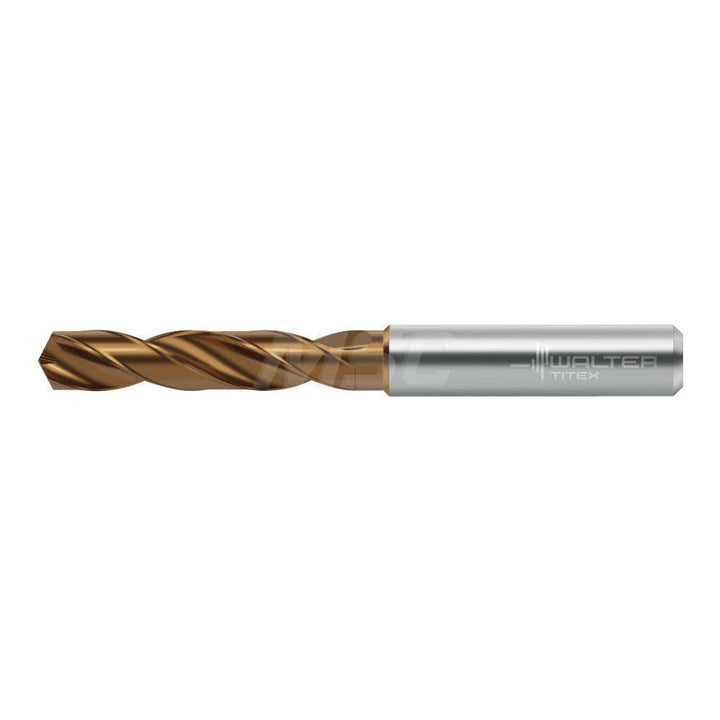

0.5512" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7377310
MFR# 7377310Series DC160
$216.12List $265.07
Save 18%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Walter-Titex 7377310 is a 0.5512" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, steel. Series DC160.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.5512
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)2.55
Flute by diameter ratio3xD
Flute length (mm)60.00
Flute typeSpiral
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length (mm)107.00
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)14.00
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
