Walter-Titex

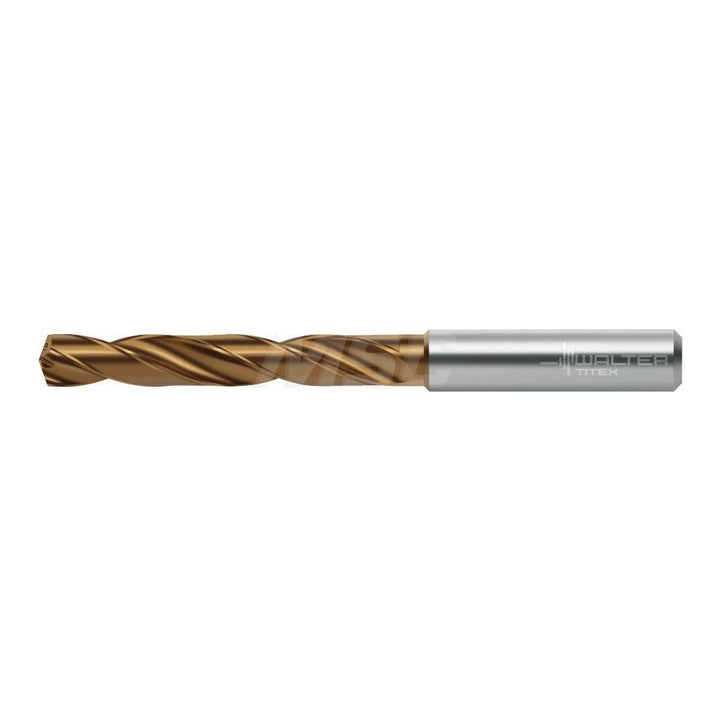

0.1654" Solid Carbide Drill Bit, AlTiN, 140° point - Walter-Titex 7377436
MFR# 7377436Series DC160
$195.14List $213.72
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Walter-Titex 7377436 is a 0.1654" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for cast iron, non-ferrous metal, steel, superalloys & titanium. Series DC160.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.1654
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Drill point length (mm)0.76
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Material gradeWJ30ET
Maximum drilling depth (mm)29.00
Number of flutes2
Overall length (mm)74.00
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel; Superalloys & Titanium
Shank diameter (mm)6.00
Shank length1.4200
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
