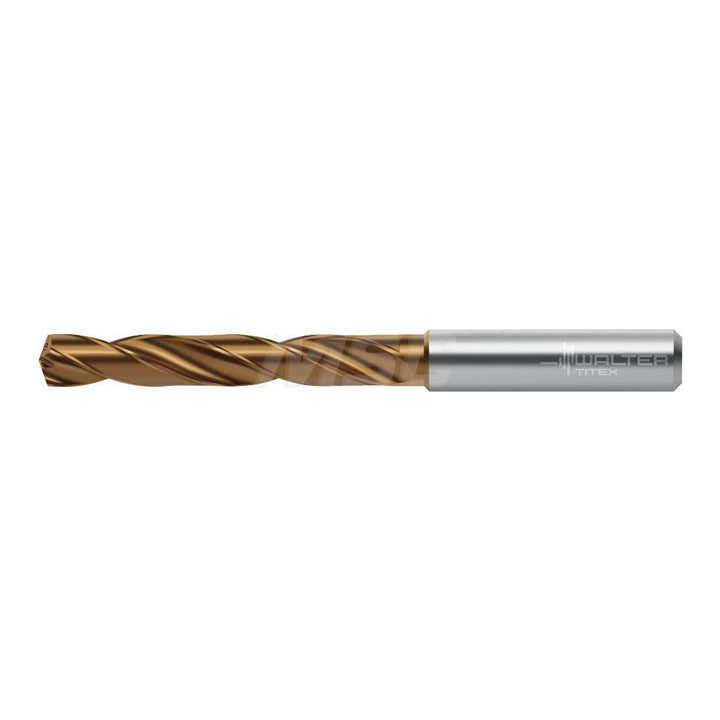

0.1732" Solid Carbide Drill Bit, Multi-layer, 140° point - Walter-Titex 7377441

Walter-Titex

0.1732" Solid Carbide Drill Bit, Multi-layer, 140° point - Walter-Titex 7377441

MFR# 7377441Series DC160

$136.36List $169.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 7377441 is a 0.1732" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous. Series DC160.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1732
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Drill point length (mm)0.80
Flute by diameter ratio5xD
Flute length1.4173
Flute typeRegular Spiral
Material gradeWJ30ET
Maximum drilling depth (mm)29.00
Number of flutes2
Overall length2.9134
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)6
Shank length1.4200
Shank typeStraight
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
