Walter-Titex

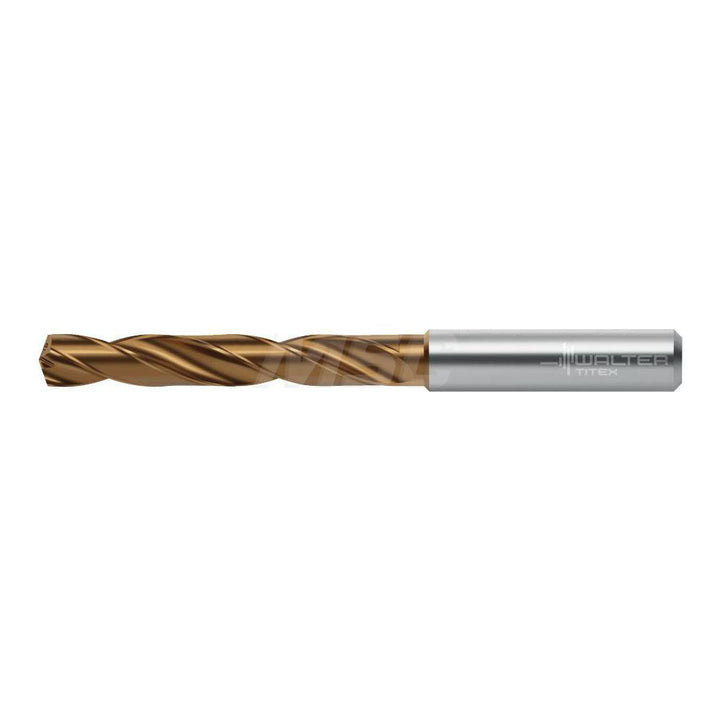

7/32" Solid Carbide Drill Bit, Multi-layer, 140° point - Walter-Titex 7377471
MFR# 7377471Series DC160
$180.64List $220.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
Flutes2
CoatingMulti-layer
Description
The Walter-Titex 7377471 is a 7/32" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous. Series DC160.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in7/32
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length (mm)1.01
Flute by diameter ratio5xD
Flute length1.7323
Flute typeRegular Spiral
Material gradeWJ30ET
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length3.2283
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)6
Shank length1.4170
Shank typeStraight
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
