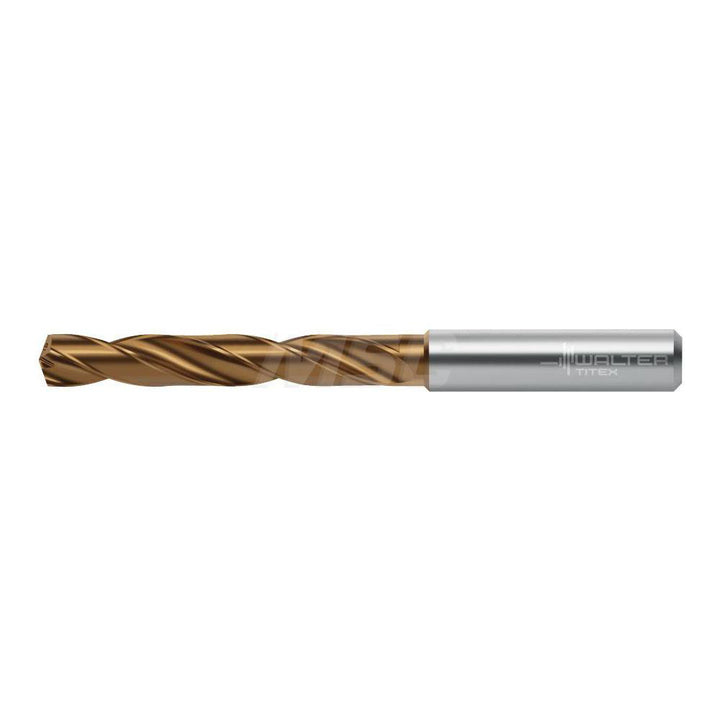

3/8" Solid Carbide Drill Bit, Multi-layer, 140° point - Walter-Titex 7377564

Walter-Titex

3/8" Solid Carbide Drill Bit, Multi-layer, 140° point - Walter-Titex 7377564

MFR# 7377564Series DC160

$190.40List $236.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 7377564 is a 3/8" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous. Series DC160.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees140
Drill point length (mm)1.73
Flute by diameter ratio5xD
Flute length2.4016
Flute typeRegular Spiral
Material gradeWJ30ET
Maximum drilling depth3.1875
Number of flutes2
Overall length4.0551
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.8125
Shank length1.5750
Shank typeStraight
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
