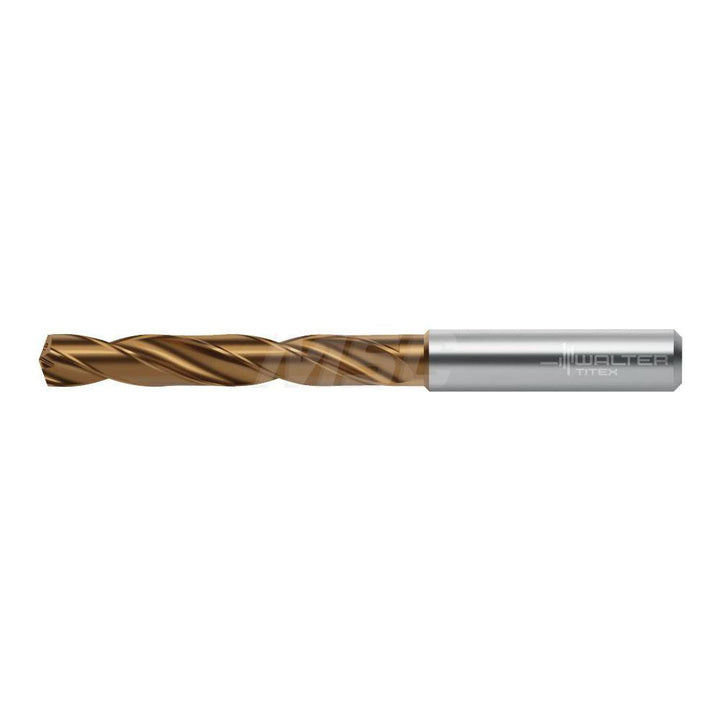

7/16" Solid Carbide Drill Bit, Multi-layer, 140° point - Walter-Titex 7377602

Walter-Titex

7/16" Solid Carbide Drill Bit, Multi-layer, 140° point - Walter-Titex 7377602

MFR# 7377602Series DC160

$258.98List $321.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 7377602 is a 7/16" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous. Series DC160.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in7/16
Drill point angle degrees140
Drill point length (mm)2.02
Flute by diameter ratio5xD
Flute length2.7953
Flute typeRegular Spiral
Maximum drilling depth (mm)56.00
Number of flutes2
Overall length4.6457
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)12
Shank length1.7700
Shank typeStraight
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
