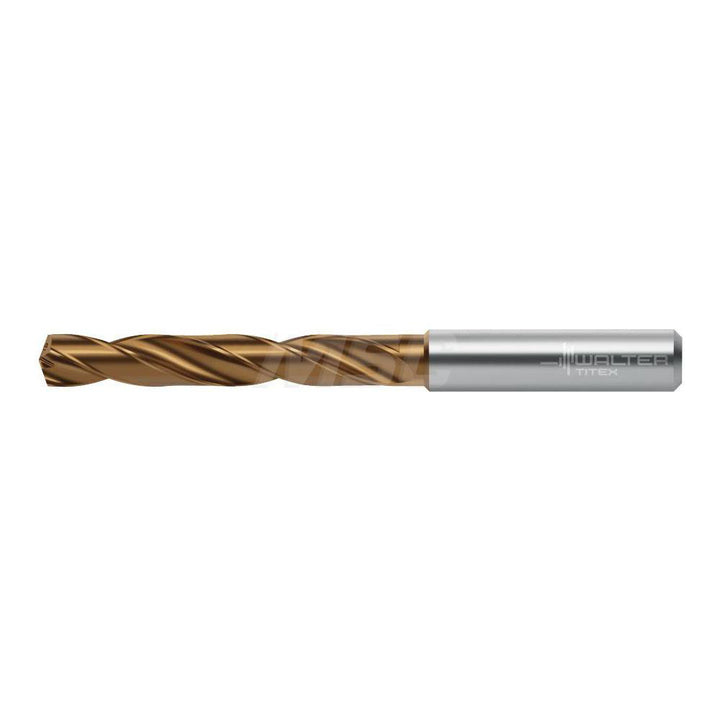

0.5354" Solid Carbide Drill Bit, AlTiN; TiSiAlCrN, 140° point - Walter-Titex 7377661

Walter-Titex

0.5354" Solid Carbide Drill Bit, AlTiN; TiSiAlCrN, 140° point - Walter-Titex 7377661

MFR# 7377661Series DC160

$354.20List $439.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 7377661 is a 0.5354" Solid Carbide drill bit with a AlTiN; TiSiAlCrN finish, 140° point. Suited for cast iron, non-ferrous metal, steel, superalloys & titanium. Series DC160.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit finish coatingAlTiN; TiSiAlCrN
Drill bit materialSolid Carbide
Drill bit size0.5354
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Drill point length (mm)2.48
Flute by diameter ratio5xD
Flute length (mm)77.00
Flute typeSpiral
Material gradeWJ30ET
Maximum drilling depth (mm)60.00
Number of flutes2
Overall length (mm)124.00
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel; Superalloys & Titanium
Shank diameter (mm)14.00
Shank length1.7700
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
