Walter-Titex

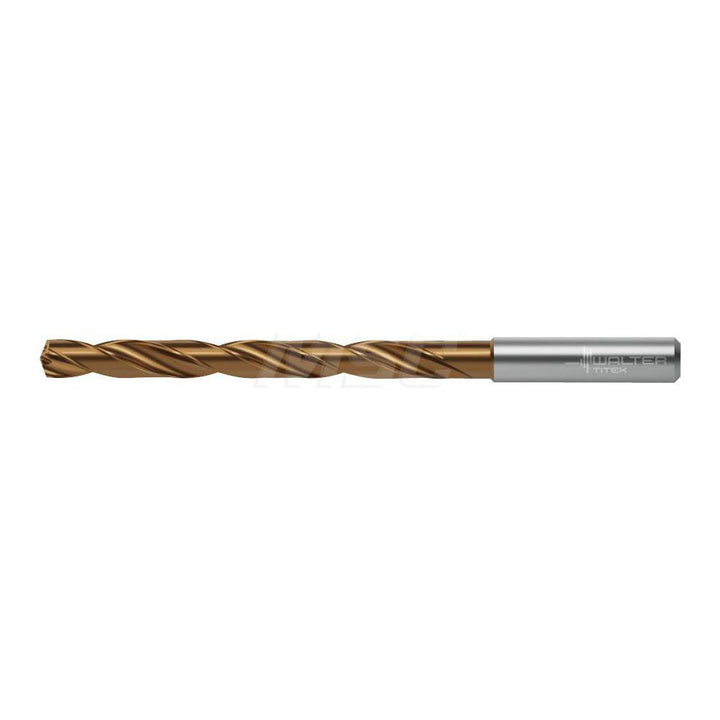

0.3150" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7377882
MFR# 7377882Series DC160
$282.56List $314.93
Save 10%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiSiAlCrN
Description
The Walter-Titex 7377882 is a 0.3150" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Series DC160.
Specifications
Coating finishTiSiAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.3150
Drill point angle degrees140
Drill point length (mm)1.46
Flute length (mm)76.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeWJ30ET
Maximum drilling depth2.5200
Overall length (mm)116.00mm
Shank diameter (mm)8.00mm
Shank length (mm)64.00mm
Shank typeParallel
StandardsDIN 6537 K
Threaded shankNo
Tool applicationBlind Hole; Cross Hole; Inclined Hole; Stack Drilling; Through Hole Drilling
Tool materialSolid Carbide
Tool performanceHigh Performance
