Walter-Titex

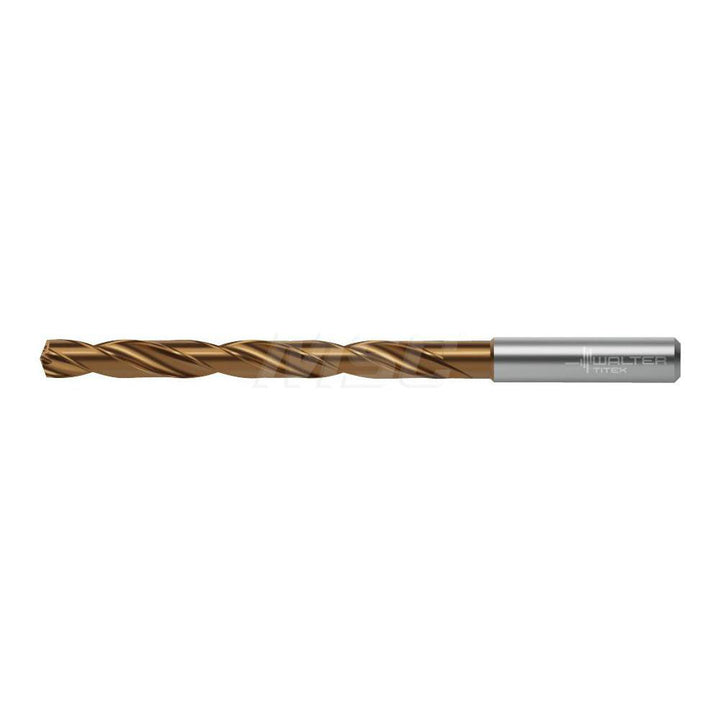

0.4331" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7377919
MFR# 7377919Series DC160
$447.38List $498.63
Save 10%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiSiAlCrN
Description
The Walter-Titex 7377919 is a 0.4331" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Series DC160.
Specifications
Coating finishTiSiAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.4331
Drill point angle degrees140
Drill point length (mm)2.00
Flute length (mm)114.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeWJ30ET
Maximum drilling depth3.7800
Overall length (mm)163.00mm
Shank diameter (mm)12.00mm
Shank length (mm)96.00mm
Shank typeParallel
StandardsDIN 6537 K
Threaded shankNo
Tool applicationBlind Hole; Cross Hole; Inclined Hole; Stack Drilling; Through Hole Drilling
Tool materialSolid Carbide
Tool performanceHigh Performance
