Walter-Titex

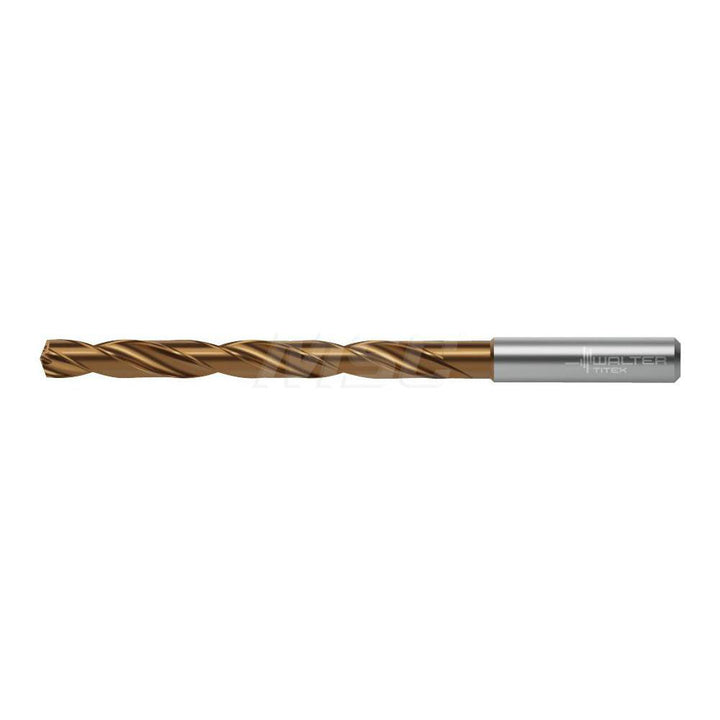

0.6890" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7377948
MFR# 7377948Series DC160
$1,341.06List $1,468.69
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiSiAlCrN
Description
The Walter-Titex 7377948 is a 0.6890" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Series DC160.
Specifications
Coating finishTiSiAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.6890
Drill point angle degrees140
Drill point length (mm)3.19
Flute length (mm)171.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeWJ30ET
Maximum drilling depth6.0240
Overall length (mm)223.00mm
Shank diameter (mm)18.00mm
Shank length (mm)153.00mm
Shank typeParallel
StandardsDIN 6537 K
Threaded shankNo
Tool applicationBlind Hole; Cross Hole; Inclined Hole; Stack Drilling; Through Hole Drilling
Tool materialSolid Carbide
Tool performanceHigh Performance
