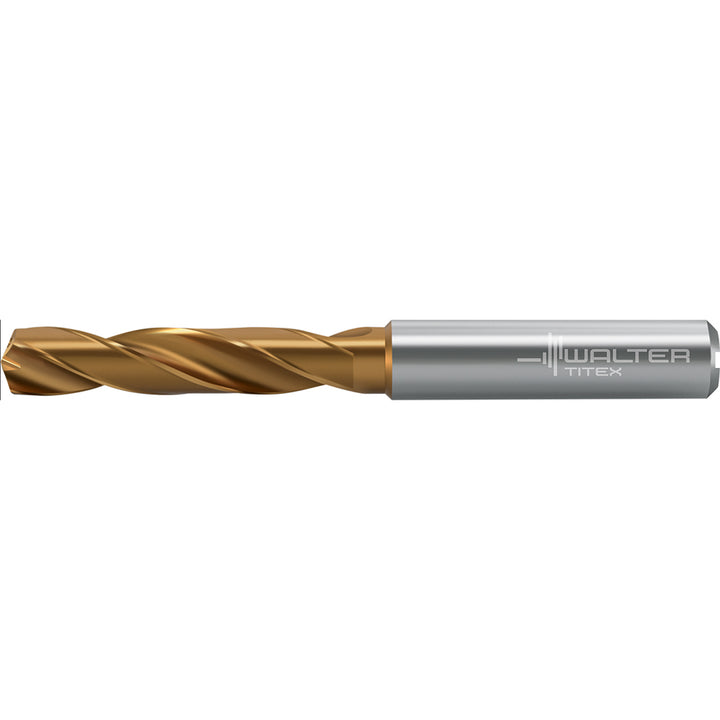

1/8" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 7378057

Walter-Titex

1/8" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 7378057

MFR# 7378057Series DC160-03-A1

$108.92List $135.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2

Description

The Walter-Titex 7378057 is a 1/8" Solid Carbide Screw Machine drill bit, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC160-03-A1.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0230
Flute by diameter ratio3xD
Flute length0.7870
Material gradeWJ30ET
Maximum drilling depth0.5510
Number of flutes2
Overall length2.4410in
Point typeX treme Evo
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.2360
Shank length1.4170in
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
