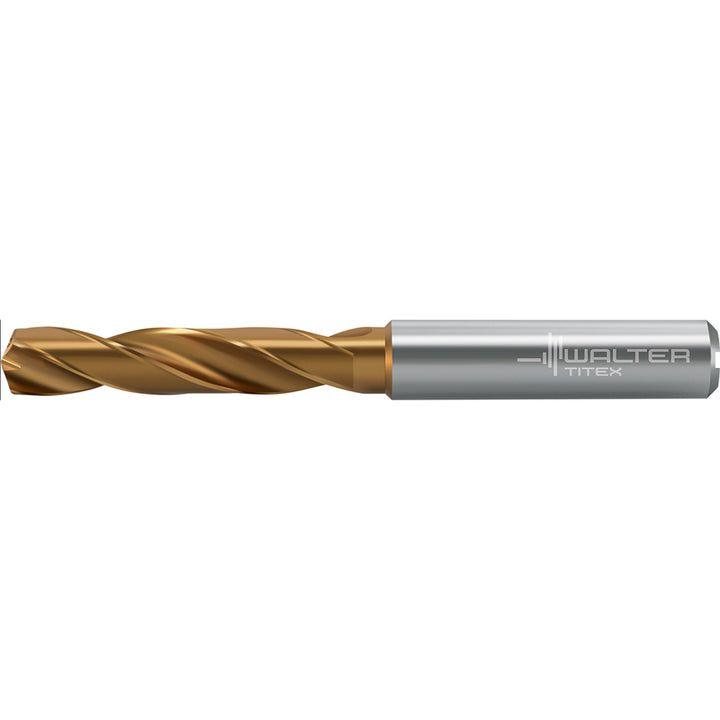

0.1496" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378085

Walter-Titex

0.1496" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378085

MFR# 7378085Series DC160-03-A1

$117.73List $131.22 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 7378085 is a 0.1496" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC160-03-A1.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.1496
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0270
Flute by diameter ratio3xD
Flute length0.9450
Flute typeRegular Spiral
Material gradeWJ30ET
Maximum drilling depth0.6690
Number of flutes2
Overall length2.5980
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.2360
Shank length1.4170
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
