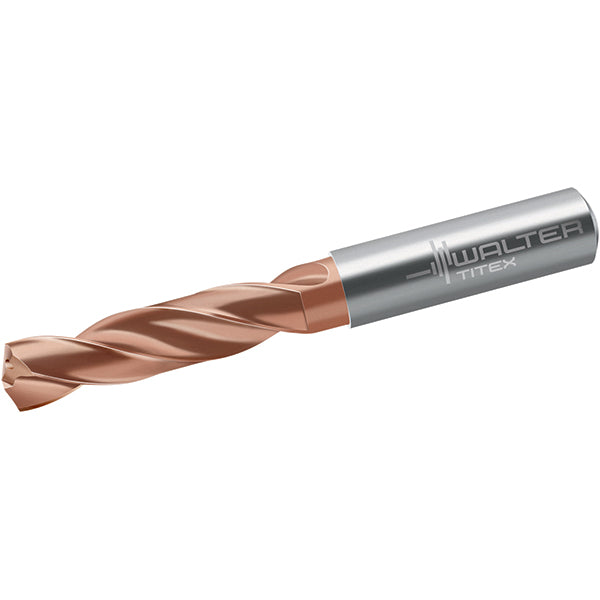

0.1693" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378096

Walter-Titex

0.1693" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378096

MFR# 7378096Series A3299XPL

$117.73List $131.22 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 7378096 is a 0.1693" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series A3299XPL.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.1693
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0308
Flute by diameter ratio3xD
Flute length0.9449
Flute typeSpiral
Material gradeK30F
Maximum drilling depth0.6693
Number of flutes2
Overall length2.5984
Point typeX-treme
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter (mm)6.00
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
Web configurationTapered
Web thinningWeb-Thinned
