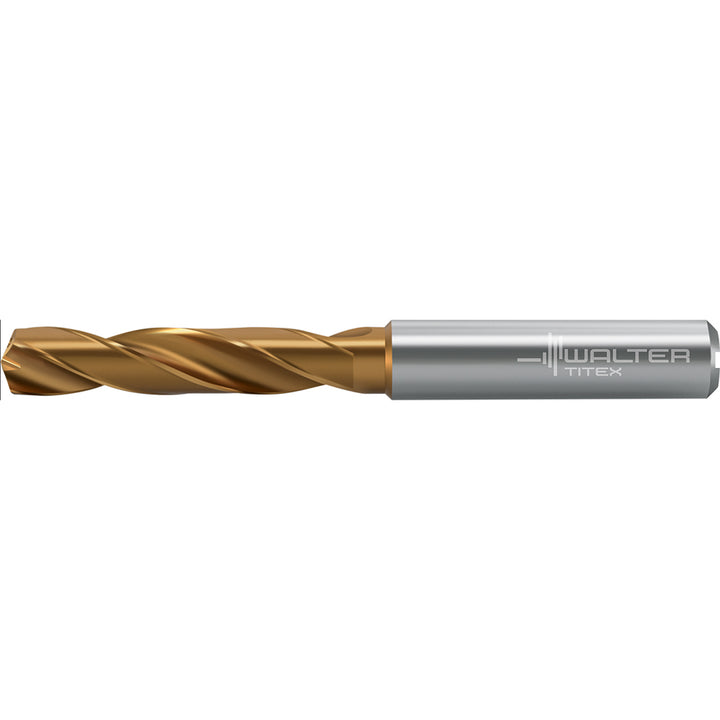

3/16" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378109

Walter-Titex

3/16" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378109

MFR# 7378109Series DC160-03-A1

$108.92List $135.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 7378109 is a 3/16" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC160-03-A1.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in3/16
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0340
Flute by diameter ratio3xD
Flute length1.1020
Flute typeRegular Spiral
Material gradeWJ30ET
Maximum drilling depth0.7870
Number of flutes2
Overall length2.5980
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.2360
Shank length1.4170
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
