0.2087" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378121

Walter-Titex

0.2087" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378121

MFR# 7378121Series DC160-03-A1

$117.73List $131.22 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

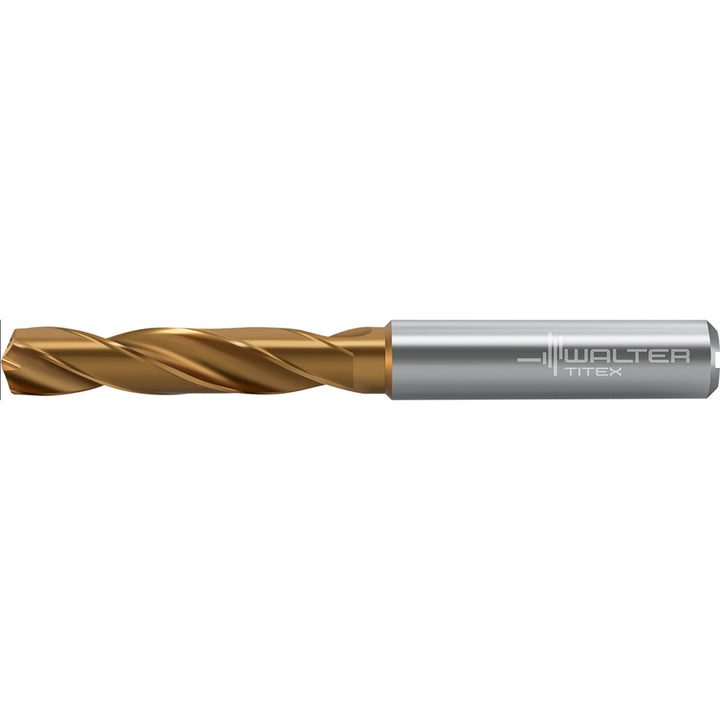

The Walter-Titex 7378121 is a 0.2087" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC160-03-A1.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2087
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0380
Flute by diameter ratio3xD
Flute length1.1020
Material gradeWJ30ET
Maximum drilling depth0.7870
Number of flutes2
Overall length2.5980
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.2360
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
