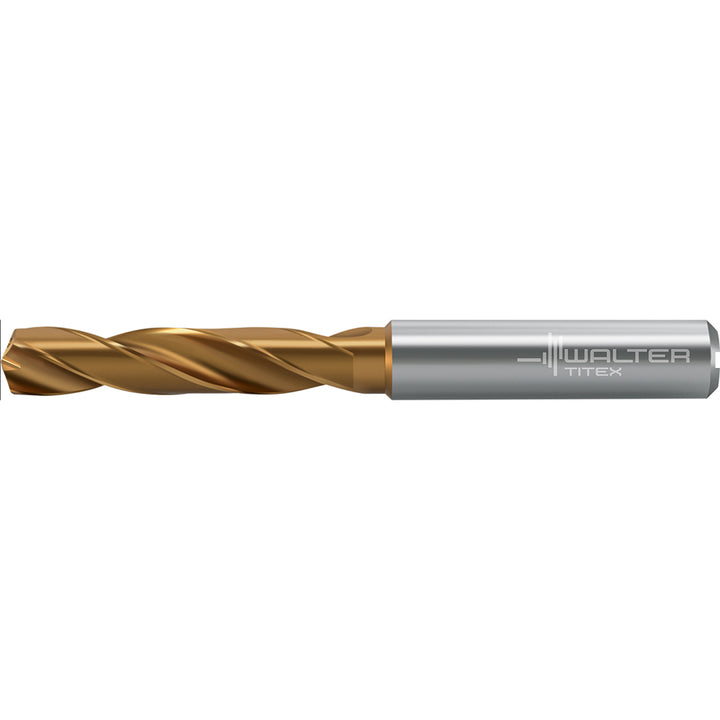

0.2638" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 7378154

Walter-Titex

0.2638" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 7378154

MFR# 7378154Series DC160-03-A1

$130.71List $162.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 7378154 is a 0.2638" Solid Carbide Screw Machine drill bit, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC160-03-A1.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2638
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0480
Flute by diameter ratio3xD
Flute length1.3390
Material gradeWJ30ET
Maximum drilling depth0.9450
Number of flutes2
Overall length3.11
Point typeX treme Evo
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.3150
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
