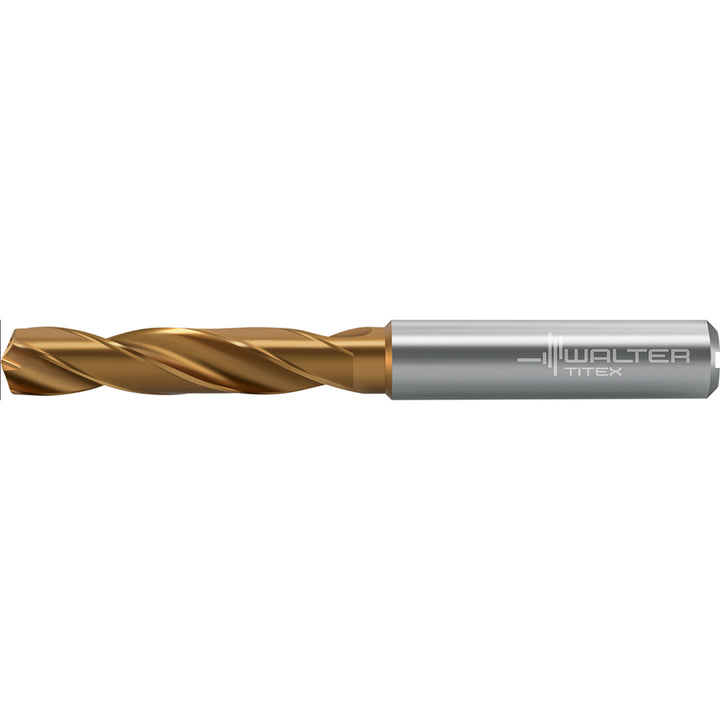

0.3346" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378197

Walter-Titex

0.3346" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378197

MFR# 7378197Series DC160

$152.49List $189.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 7378197 is a 0.3346" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC160.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.3346
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0609
Flute by diameter ratio3xD
Flute length1.8504
Flute typeRegular Spiral
Material gradeK30F
Maximum drilling depth1.3780
Number of flutes2
Overall length3.5039
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
Web configurationTapered
Web thinningWeb-Thinned
