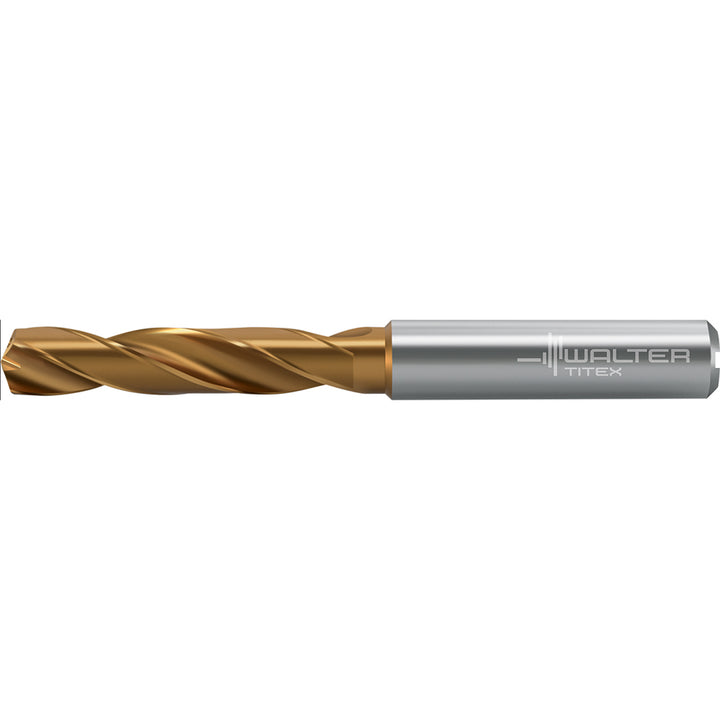

0.3937" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378233

Walter-Titex

0.3937" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378233

MFR# 7378233Series DC160-03-A1

$164.73List $183.60 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 7378233 is a 0.3937" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC160-03-A1.

Specifications

Coating finishCoated
Coolant throughCoolant Through
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.3937
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0720
Flute by diameter ratio3xD
Flute length1.8500
Material gradeWJ30ET
Maximum drilling depth1.3780
Number of flutes2
Overall length3.50400
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank length1.5750
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
