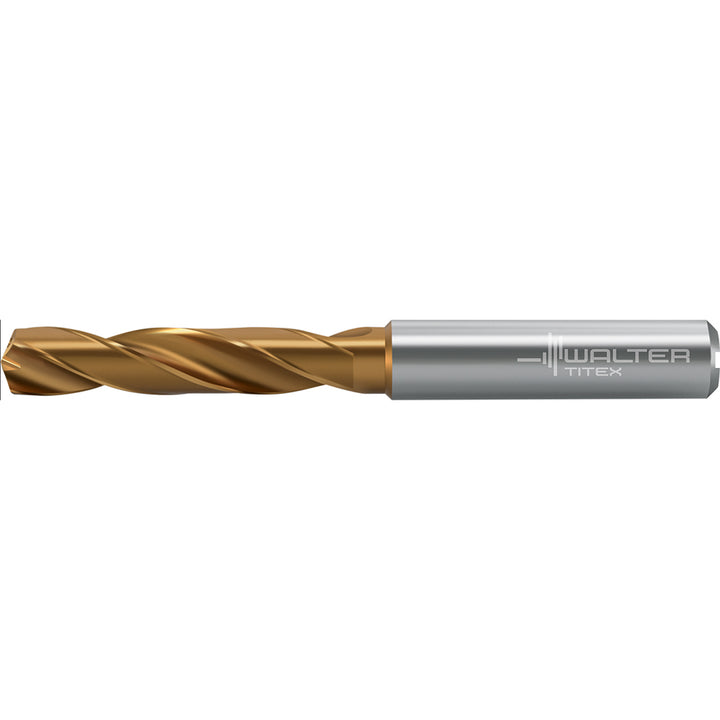

13/32" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 7378241

Walter-Titex

13/32" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 7378241

MFR# 7378241Series DC160-03-A1

$206.54List $256.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2

Description

The Walter-Titex 7378241 is a 13/32" Solid Carbide Screw Machine drill bit, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC160-03-A1.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0740
Flute by diameter ratio3xD
Flute length2.1650
Material gradeWJ30ET
Maximum drilling depth1.5750
Number of flutes2
Overall length4.016
Point typeX treme Evo
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.4720
Shank length1.7720
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
