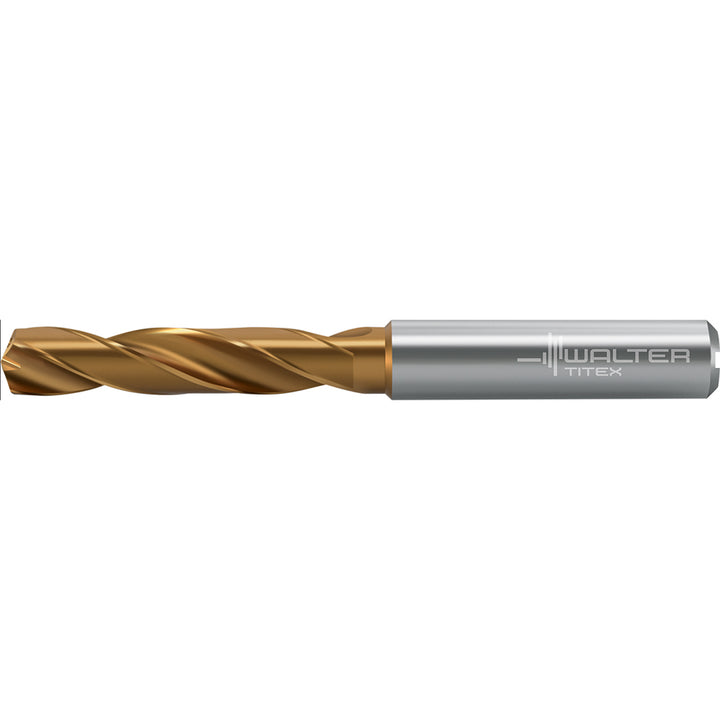

0.4213" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378248

Walter-Titex

0.4213" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378248

MFR# 7378248Series DC160-03-A1

$206.54List $256.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 7378248 is a 0.4213" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC160-03-A1.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.4213
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0770
Flute by diameter ratio3xD
Flute length2.1650
Flute typeRegular Spiral
Material gradeWJ30ET
Maximum drilling depth1.5750
Number of flutes2
Overall length4.0160
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.4720
Shank length1.7720
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
