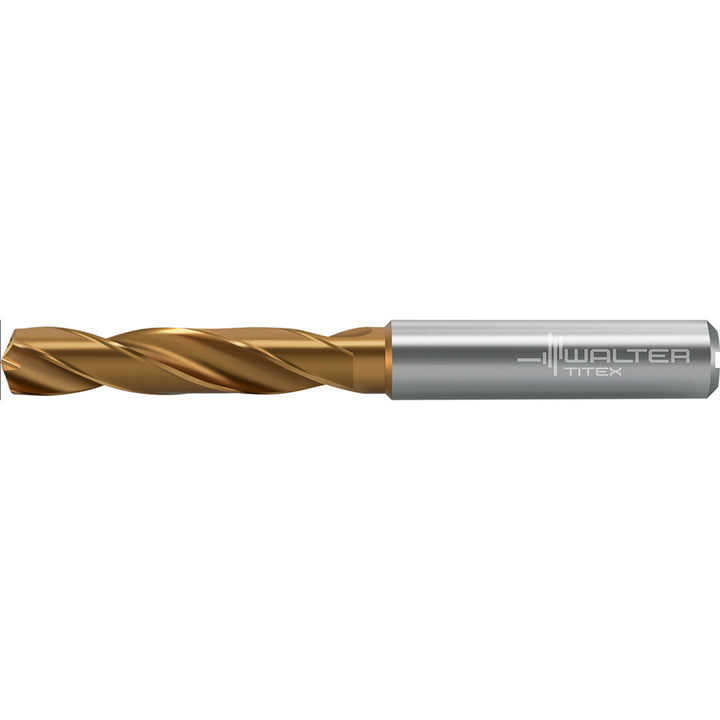

0.5945" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378349

Walter-Titex

0.5945" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378349

MFR# 7378349Series DC160-03-A1

$412.81List $529.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 7378349 is a 0.5945" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC160-03-A1.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.5945
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.1080
Flute by diameter ratio3xD
Flute length2.5590
Material gradeWJ30ET
Maximum drilling depth1.7720
Number of flutes2
Overall length4.5280
Point typeX treme Evo
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.6300
Shank length1.8900
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
