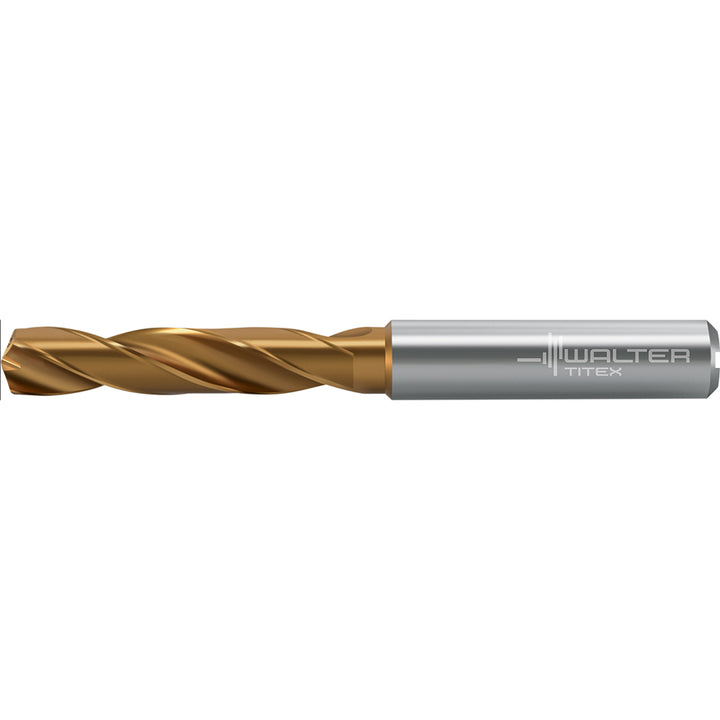

0.6575" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 7378380

Walter-Titex

0.6575" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 7378380

MFR# 7378380Series DC160-03-A1

$505.39List $626.40 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 7378380 is a 0.6575" Solid Carbide Screw Machine drill bit, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series DC160-03-A1.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.6575
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle140
Drill point length0.1200
Flute by diameter ratio3xD
Flute length2.8740
Material gradeWJ30ET
Maximum drilling depth2.0080
Number of flutes2
Overall length4.843
Point typeX treme Evo
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.7090
Shank length1.8900
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
