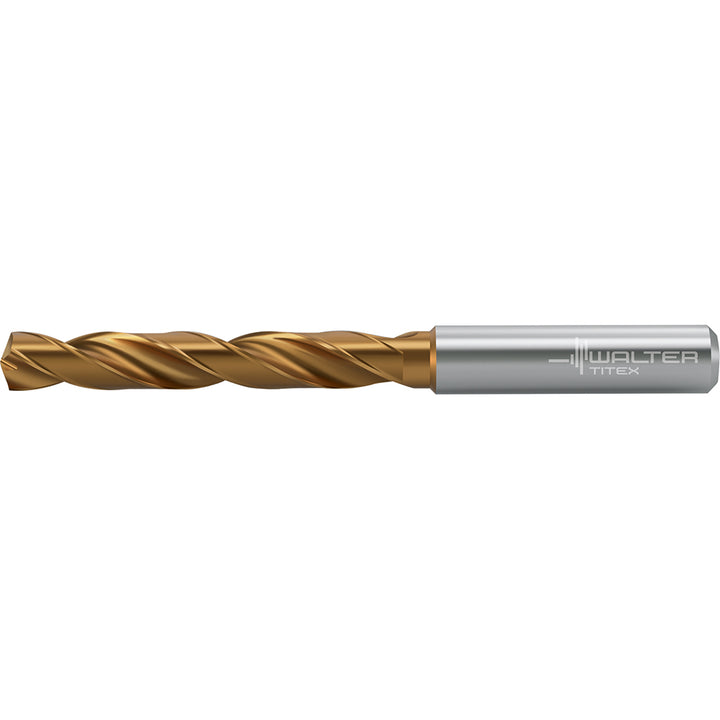

0.1575" Solid Carbide Drill Bit, AlTiN; TiSiAlCrN, 140° point - Walter-Titex 7378449

Walter-Titex

0.1575" Solid Carbide Drill Bit, AlTiN; TiSiAlCrN, 140° point - Walter-Titex 7378449

MFR# 7378449Series DC160-05-A0

$122.98List $137.06 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 7378449 is a 0.1575" Solid Carbide drill bit with a AlTiN; TiSiAlCrN finish, 140° point. Suited for cast iron, steel. Series DC160-05-A0.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit finish coatingAlTiN; TiSiAlCrN
Drill bit materialSolid Carbide
Drill bit size0.1575
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Drill point length0.0290
Flute by diameter ratio5xD
Flute length1.4170
Material gradeWJ30ET
Maximum drilling depth1.1420
Number of flutes2
Overall length2.9130
Primary workpiece materialCast Iron; Steel
Shank diameter0.2360
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
