Walter-Titex

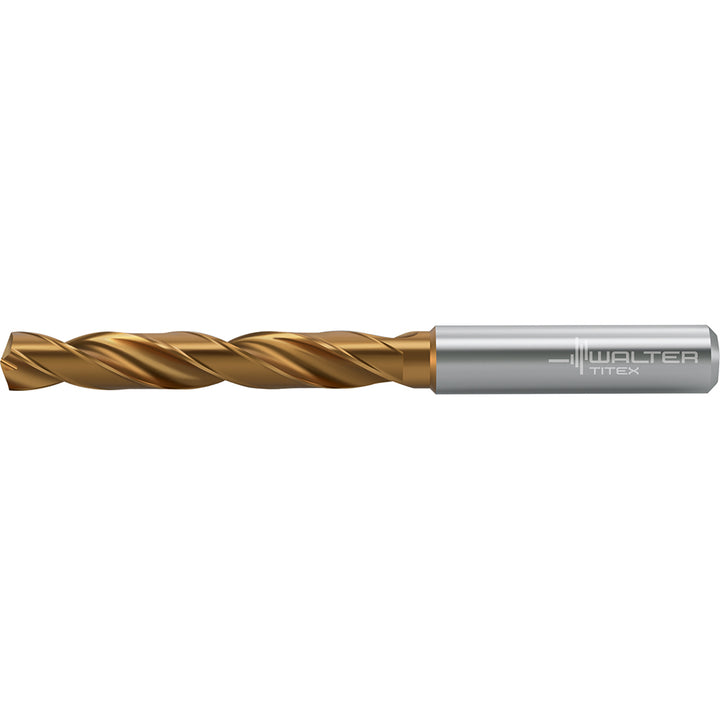

0.2031" Solid Carbide Drill Bit, AlTiN, 140° point - Walter-Titex 7378477
MFR# 7378477Series DC160-05-A0
$113.76List $141.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Walter-Titex 7378477 is a 0.2031" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for cast iron, steel. Series DC160-05-A0.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.2031
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length0.0370
Flute by diameter ratio5xD
Flute length1.7320
Material gradeWJ30ET
Maximum drilling depth1.3780
Number of flutes2
Overall length3.2280
Primary workpiece materialCast Iron; Steel
Shank diameter0.2360
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
