Walter-Titex

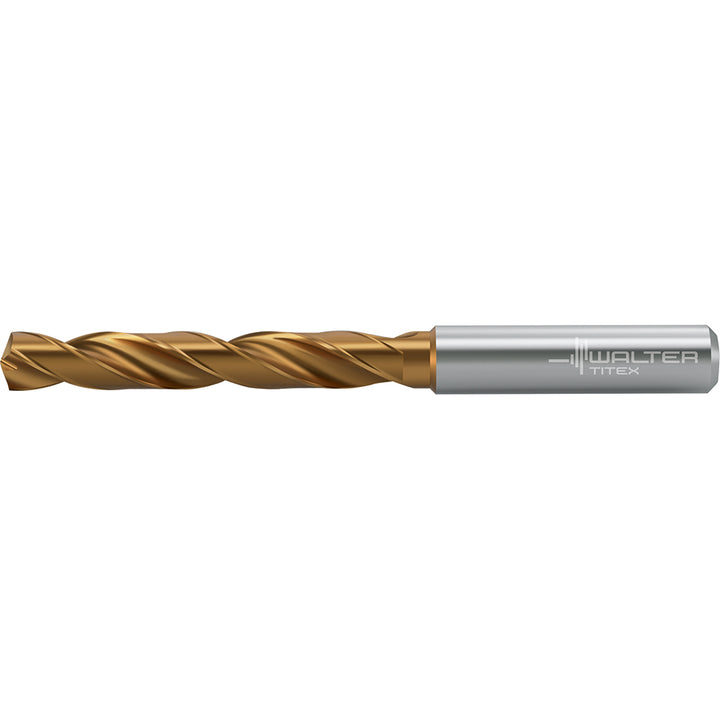

0.2717" Solid Carbide Drill Bit, AlTiN, 140° point - Walter-Titex 7378518
MFR# 7378518Series DC160-05-A0
$136.36List $169.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Walter-Titex 7378518 is a 0.2717" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for cast iron, steel. Series DC160-05-A0.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.2717
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Drill point length0.0490
Flute by diameter ratio5xD
Flute length2.0870
Material gradeWJ30ET
Maximum drilling depth1.6930
Number of flutes2
Overall length3.5830
Primary workpiece materialCast Iron; Steel
Shank diameter0.3150
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
