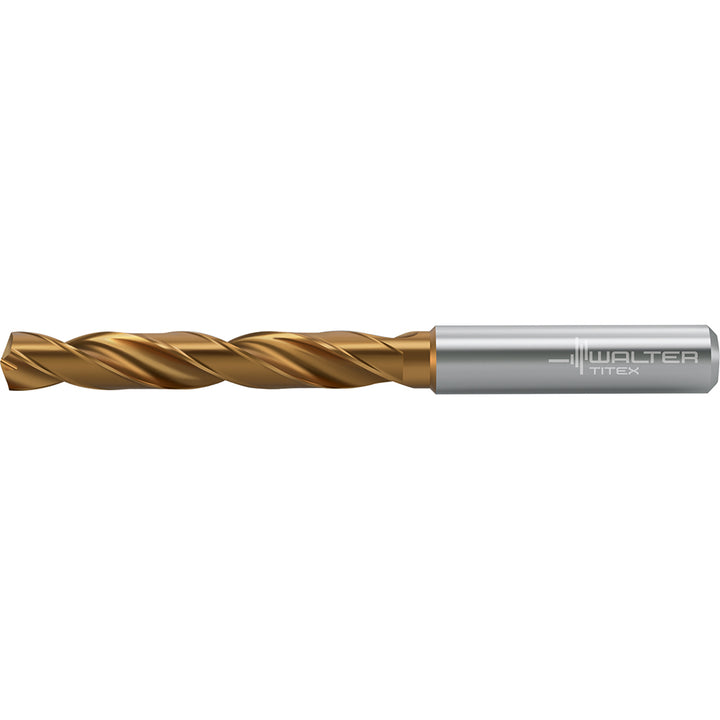

0.6614" Solid Carbide Drill Bit, AlTiN; TiSiAlCrN, 140° point - Walter-Titex 7378743

Walter-Titex

0.6614" Solid Carbide Drill Bit, AlTiN; TiSiAlCrN, 140° point - Walter-Titex 7378743

MFR# 7378743Series DC160-05-A0

$438.44List $547.25 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 7378743 is a 0.6614" Solid Carbide drill bit with a AlTiN; TiSiAlCrN finish, 140° point. Suited for cast iron, steel. Series DC160-05-A0.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit finish coatingAlTiN; TiSiAlCrN
Drill bit materialSolid Carbide
Drill bit size0.6614
Drill bit size range0.6500+
Drill point angle degrees140
Drill point length0.1200
Flute by diameter ratio5xD
Flute length3.6610
Material gradeWJ30ET
Maximum drilling depth2.7950
Number of flutes2
Overall length5.6300
Primary workpiece materialCast Iron; Steel
Shank diameter0.7090
Shank length1.8900
Shank typeWhistle Notch
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
