Walter-Titex

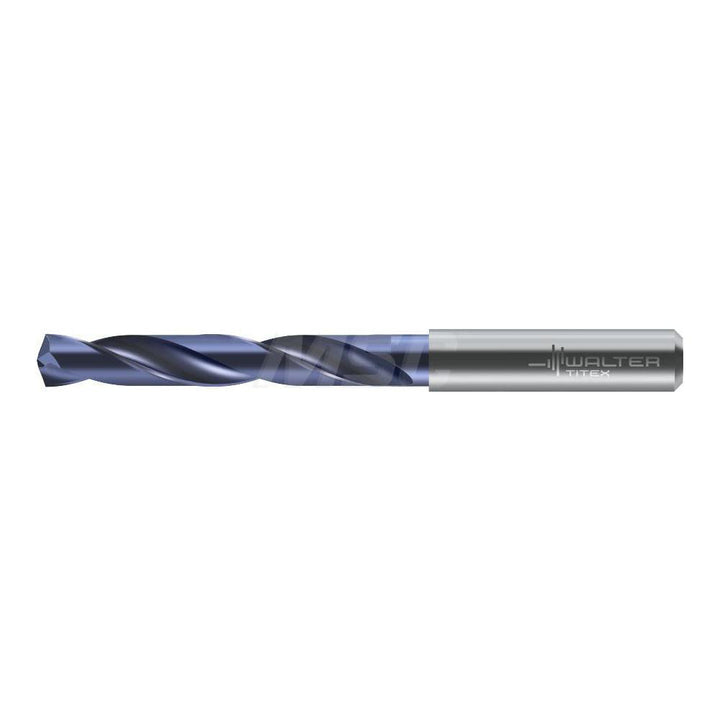

0.2913" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 7462118
MFR# 7462118Series DC150
$76.55List $98.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Walter-Titex 7462118 is a 0.2913" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cast iron, steel. Series DC150.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit finish coatingTiNAl
Drill bit materialSolid Carbide
Drill bit size0.2913
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Drill point length (mm)1.35
Flute by diameter ratio5xD
Flute length (mm)53.00
Flute typeSpiral
Material gradeWJ30TA
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length (mm)91.00
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)8.00
Shank length1.4200
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
