Walter-Titex

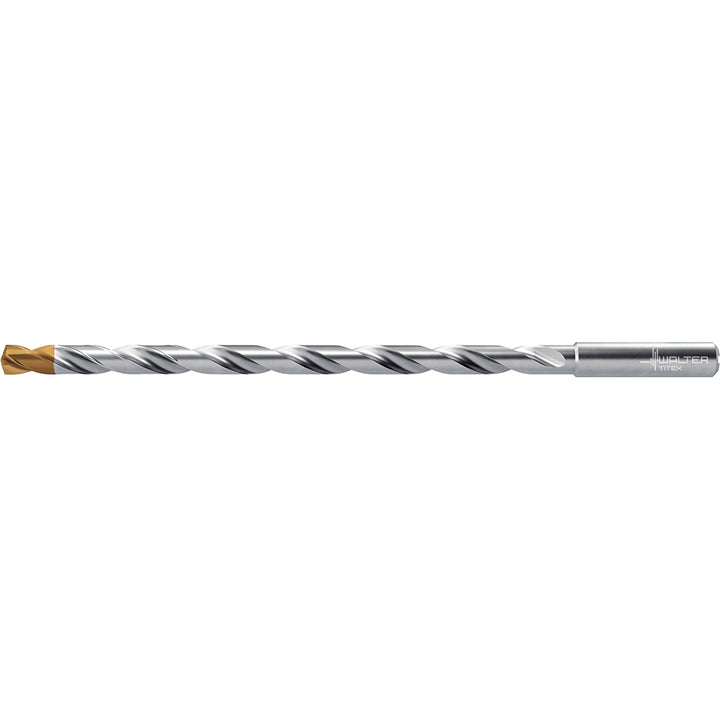

0.2813" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7684263
MFR# 7684263Series DC160-16-A1
$403.65List $441.00
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiSiAlCrN
Description
The Walter-Titex 7684263 is a 0.2813" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Suited for alloy, titanium alloy. Series DC160-16-A1.
Specifications
Coating finishTiSiAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size0.2813
Drill point angle140
Drill point length0.0510
Flute by diameter ratio16xD
Flute length5.9840
Maximum drilling depth5.5120
Number of flutes2
Overall length7.5590
Primary workpiece materialAlloy; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.3150
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
