Walter-Titex

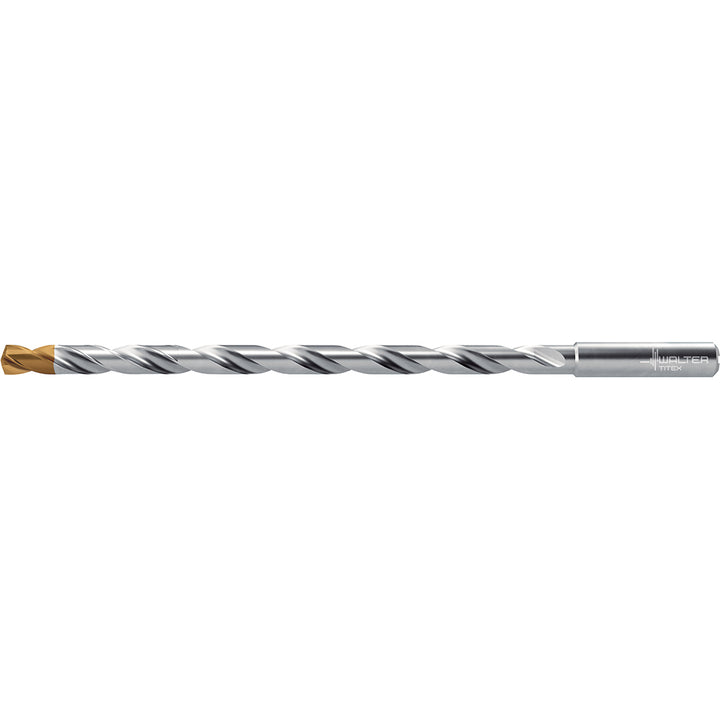

5/16" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7684266
MFR# 7684266Series DC160-16-A1
$403.65List $441.00
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
CoatingTiSiAlCrN
Description
The Walter-Titex 7684266 is a 5/16" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Suited for alloy, titanium alloy. Series DC160-16-A1.
Specifications
Coating finishTiSiAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size in5/16
Drill point angle140
Drill point length0.0570
Flute by diameter ratio16xD
Flute length5.9840
Maximum drilling depth5.5120
Number of flutes2
Overall length7.5590
Primary workpiece materialAlloy; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.3150
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
