Walter-Titex

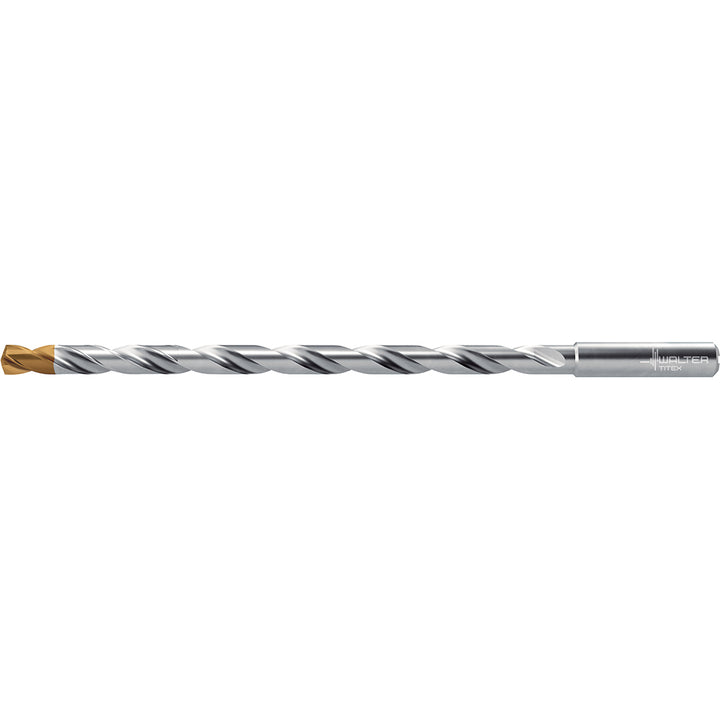

3/8" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7684272
MFR# 7684272Series DC160-16-A1
$471.38List $515.00
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingTiSiAlCrN
Description
The Walter-Titex 7684272 is a 3/8" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Suited for alloy, titanium alloy. Series DC160-16-A1.
Specifications
Coating finishTiSiAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size in3/8
Drill point angle140
Drill point length0.0680
Flute by diameter ratio16xD
Flute length7.0870
Maximum drilling depth6.4960
Number of flutes2
Overall length8.8190
Primary workpiece materialAlloy; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.3940
Shank length1.5750
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
