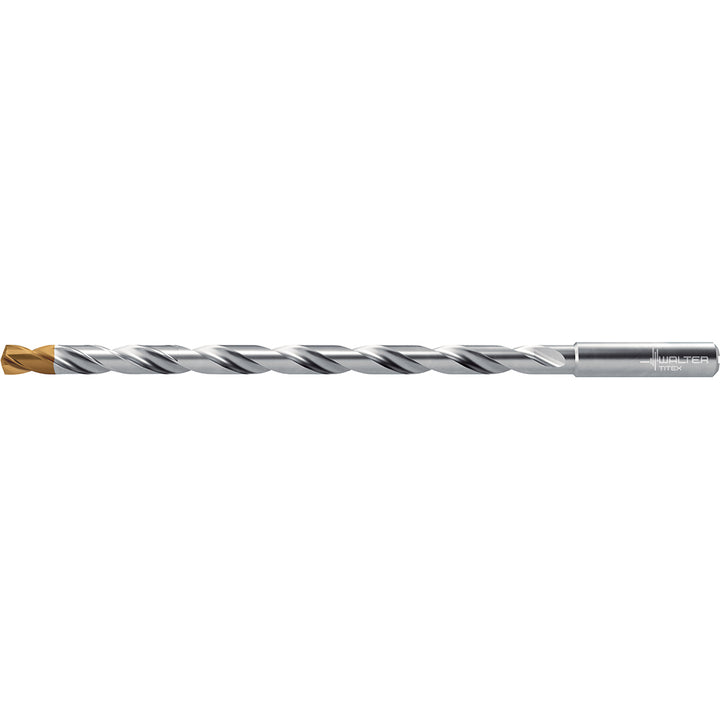

7/16" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7684278

Walter-Titex

7/16" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7684278

MFR# 7684278Series DC160-16-A1

$639.79List $699.00 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2
CoatingTiSiAlCrN

Description

The Walter-Titex 7684278 is a 7/16" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Suited for alloy, titanium alloy. Series DC160-16-A1.

Specifications

Coating finishTiSiAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size in7/16
Drill point angle140
Drill point length0.0800
Flute by diameter ratio16xD
Flute length8.5040
Maximum drilling depth7.7950
Number of flutes2
Overall length10.4330
Primary workpiece materialAlloy; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.4720
Shank length1.7720
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
