Walter-Titex

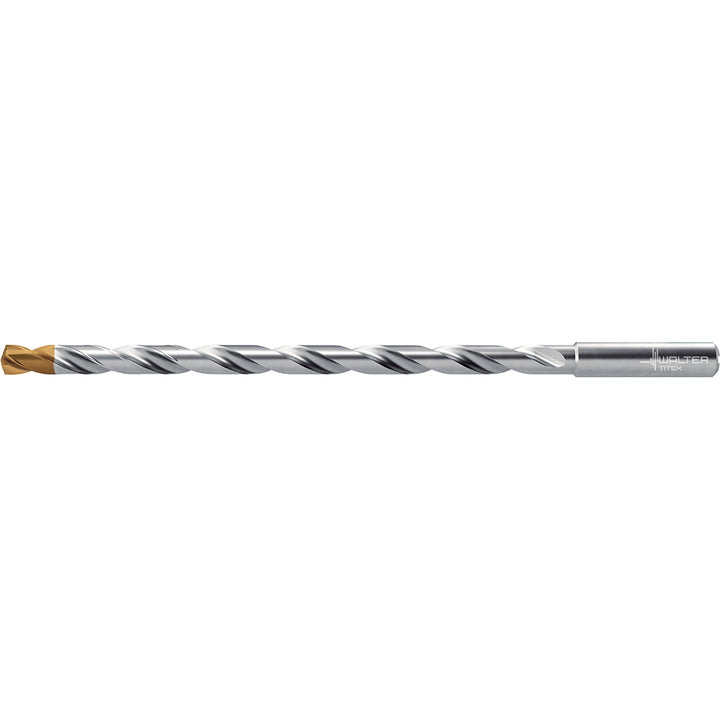

1/2" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7684283
MFR# 7684283Series DC160-16-A1
$875.94List $957.00
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
CoatingTiSiAlCrN
Description
The Walter-Titex 7684283 is a 1/2" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Suited for alloy, titanium alloy. Series DC160-16-A1.
Specifications
Coating finishTiSiAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size in1/2
Drill point angle140
Drill point length0.0910
Flute by diameter ratio16xD
Flute length9.9210
Maximum drilling depth9.3700
Number of flutes2
Overall length11.8500
Primary workpiece materialAlloy; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.5510
Shank length1.7720
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
