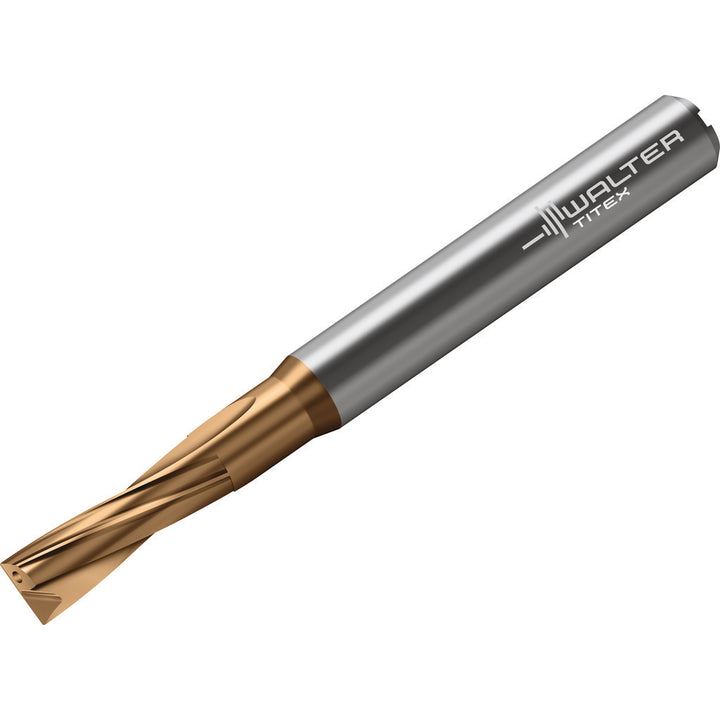

0.1969" Solid Carbide Drill Bit, Multi-layer, 180° point - Walter-Titex 8221622
MFR# 8221622Series DC118-02-A1
$215.34List $241.92
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Walter-Titex 8221622 is a 0.1969" Solid Carbide drill bit with a Multi-layer finish, 180° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC118-02-A1.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit gradeWJ30ET
Drill bit size0.1969
Drill point angle180
Drill point length (mm)0.00
Flute by diameter ratio2xD
Flute length (mm)20.00
Flute typeRegular Spiral
Maximum drilling depth (mm)13.50
Number of flutes2
Overall length (mm)66.00
Point typeFlat Bottom
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter (mm)6.00
Shank length (mm)42.00
Shank typeWhistle Notch
Spiral typeRegular
Tool materialSolid Carbide
