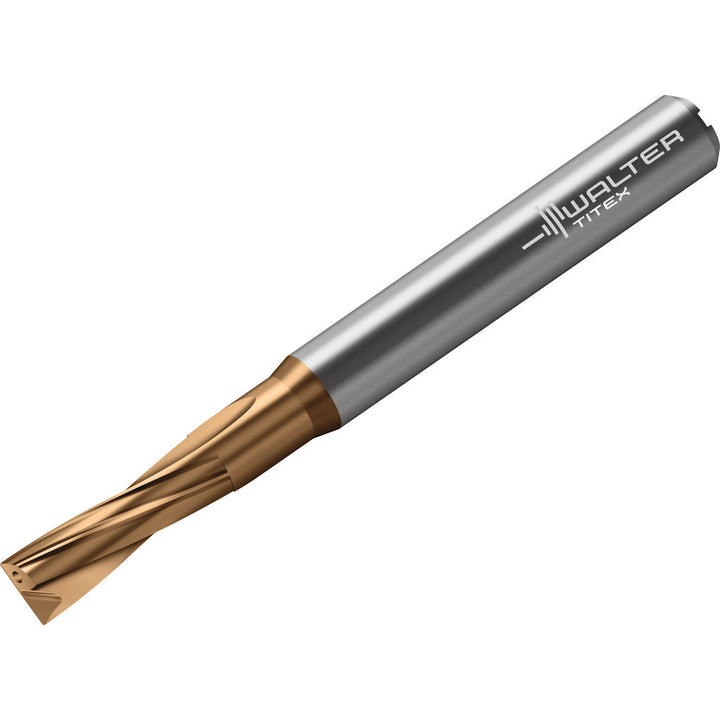

11/32" Solid Carbide Drill Bit, Multi-layer, 180° point - Walter-Titex 8221640

Walter-Titex

11/32" Solid Carbide Drill Bit, Multi-layer, 180° point - Walter-Titex 8221640

MFR# 8221640Series DC118-02-A1

$227.65List $260.28 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 8221640 is a 11/32" Solid Carbide drill bit with a Multi-layer finish, 180° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC118-02-A1.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit gradeWJ30ET
Drill bit size in11/32
Drill point angle180
Drill point length0.0000
Flute by diameter ratio2xD
Flute length1.2598
Flute typeRegular Spiral
Maximum drilling depth0.8780
Number of flutes2
Overall length3.5039
Point typeFlat Bottom
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3937
Shank length1.9685
Shank typeWhistle Notch
Spiral typeRegular
Tool materialSolid Carbide
