Walter-Titex

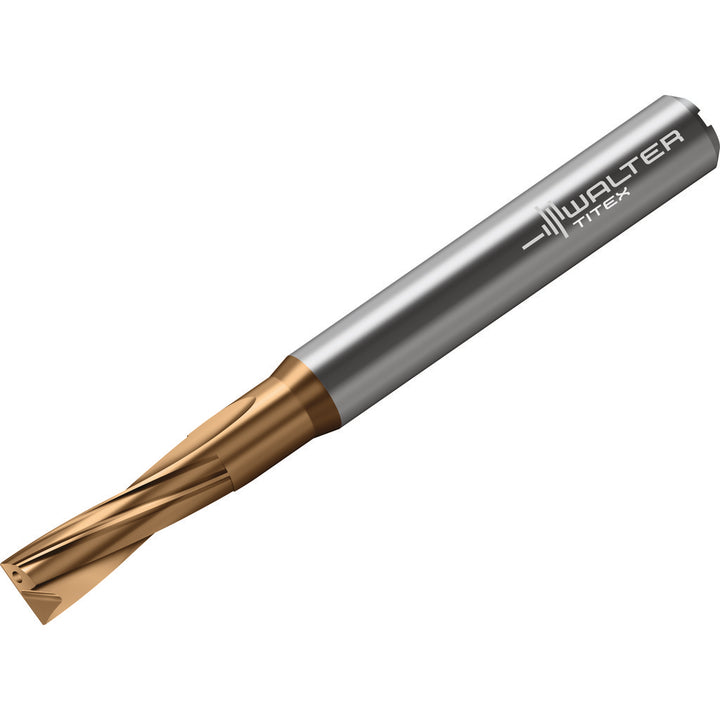

10.20mm Solid Carbide Drill Bit, TiSiAlCrN/AlTiN, 180° point - Walter-Titex 8221645
MFR# 8221645Series DC118-02-A1
$308.87List $353.15
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiSiAlCrN/AlTiN
Description
The Walter-Titex 8221645 is a 10.20mm Solid Carbide drill bit with a TiSiAlCrN/AlTiN finish, 180° point. Series DC118-02-A1.
Specifications
Coating finishTiSiAlCrN/AlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit gradeWJ30ET
Drill bit size (mm)10.20
Drill point angle180
Drill point length (mm)0.00
Flute by diameter ratio2xD
Flute length (mm)40.00
Flute typeSpiral
Material gradeSolid Carbide
Maximum drilling depth (mm)29.00
Number of flutes2
Overall length (mm)102.0000
Shank diameter (mm)12.0000
Shank length (mm)52.000
Shank typeWhistle Notch
Spiral typeRegular Spiral
Tool materialSolid Carbide
