Walter-Titex

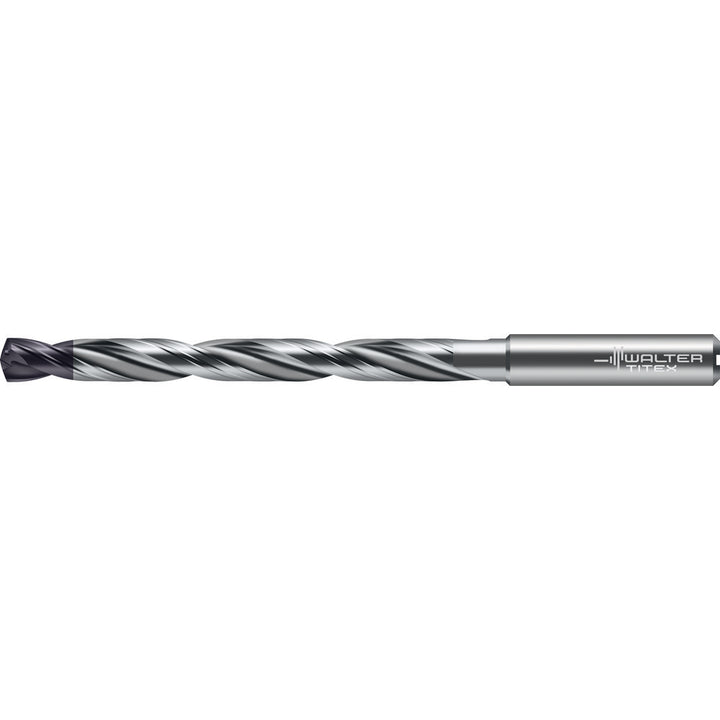

3/8" Solid Carbide Drill Bit, ZrN, 140° point - Walter-Titex 8325156
MFR# 8325156Series DC180
$362.73List $428.00
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingZrN
Description
The Walter-Titex 8325156 is a 3/8" Solid Carbide drill bit with a ZrN finish, 140° point. Series DC180.
Specifications
Coating finishZrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size in3/8
Drill point angle degrees140
Drill point length0.0682
Flute by diameter ratio8xD
Flute length3.7402
Flute typeRegular Spiral
Maximum drilling depth3.1496
Number of flutes2
Overall length5.4724
Point typeStandard
Shank diameter0.3937
Shank length1.5748
Shank typeCylindrical
Spiral typeRegular
