1/8" 4-Flute Cobalt Square End Mill - Weldon 44110-00-W

Weldon

1/8" 4-Flute Cobalt Square End Mill - Weldon 44110-00-W

MFR# 44110-00-W

$29.65List $51.46 Save 42%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialCobalt
CoatingBright/Uncoated

Description

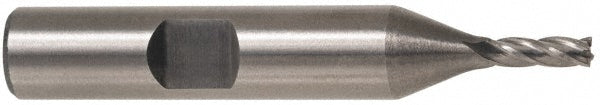

The Weldon 44110-00-W is a 1/8 4-flute Cobalt (M42) square end mill. 3/8 length of cut, 2-5/16 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeM42
Mill diameter in1/8
Mill diameter tolerance+0.001/-0.000 in
Number of flutes4
Overall length in2-5/16
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0005 in
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Cleveland1/8" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32574 $32.94 OSG1/8" 4-Flute Solid Carbide Square End Mill - OSG 444-1250 $42.49 OSG1/8" 4-Flute Vanadium High Speed Steel Square End Mill, TiCN - OSG 5740108 $26.75 Helical Solutions1/8" 4-Flute Solid Carbide Square End Mill, APLUS - Helical Solutions 81635 $25.15
